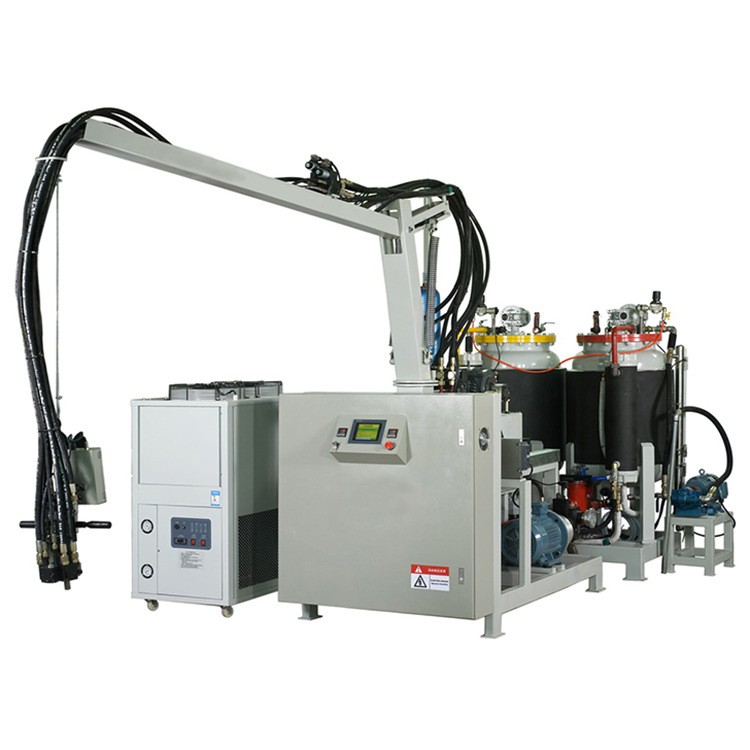

Soft Foam Self-Crust Polyurethane High Pressure Foaming Machine

This series of foaming machine adopts a new design concept, to improve the operability, improve the use of stable new, improve the accuracy of filling, reduce the use of energy consumption as the design and development indicators, can meet the production and use of more products.


Product characteristics

1. Electrical control: Siemens PLC, Schneider accessories based electrical control system. Full modular integrated control of all processes, simple operation, intelligent stability.

2. Double constant temperature control: the use of double hot and cold - body machine, with hot and cold exchanger, to ensure that the original temperature is constant, error < soil 2°C, improve the quality of foaming products.

3. Fault self-inspection early warning system: The system can give early warning in advance, so that relevant parameters can be adjusted in time to avoid the appearance of defective products.

4. Mixing device: The use of self-cleaning/check/splash-proof/new V-shaped foam gun (3 times mixing function), beautiful structure, the operator with Siemens polyurethane special pump, accurate injection, good mixing effect.

Conditions of use

         Component             ViscosityFoaming temperature ℃          Mixing Ratio
A (Polyether polyols)             <2500              25±3
           1:1.5-1.5:1
B (Isocyanate)           800~2500              25±3           1:1.5-1.5:1

Polyurethane Foaming Machine Parameters


   MODEL

    Mixing ratio(1:1) (g/s)

   MODEL
    Mixing ratio(2:1) (g/s)
      Min
     Max
      Min
     Max
PH(R/F)-10      15     100


PH(R/F)-20/10



      20


     200

PH(R/F)-20      30     300
PH(R/F)-40      50     560
PH(R/F)-40/20      40     400
PH(R/F)-100     150    1530


PH(R/F)-100/40


    100


     950

PH(R/F)-150     300    2650
PH(R/F)-300     600    5600


PH(R/F)-150/100



    200


    2100

PH(R/F)-600    1200   11000

Use of Polyurethane Foaming Machine
