HDPE Pipe Extrusion Line

HDPE Pipe Extrusion Line, Vacuum Diameter Insulation Pipe Production Line
Dia: 110mm-1590mm

Description

Main Technical Peremeters

The unit is mainly used for large diameter PE insulation pipe production. The product is mainly used in the outer layer of heating pipe, the middle layer is polyurethane foam layer, the inner layer is steel pipe. Also can produce water supply pipe, drainage pipe, etc.

Model	Drawing Range mm	Length-diameter Ratio ( L/D)	Power KW	Center height mm	Cooling	Capacity kg/h
BL-65	90-180	30:1	70	1000	Air cooling and water cooling	30-120
BL-90	200-420	30:1	110	1000		50-220
BL-120	265-655	30:1	258	1100		100-350
BL-150	760-1155	30:1	310	1200		200-500
BL-180	960-1420	30:1	380	1200		250-750
BL-200	1275-1800	30:1	450	1200		300-800


Type specification table of thermal insulation pipe

Components of the production line:

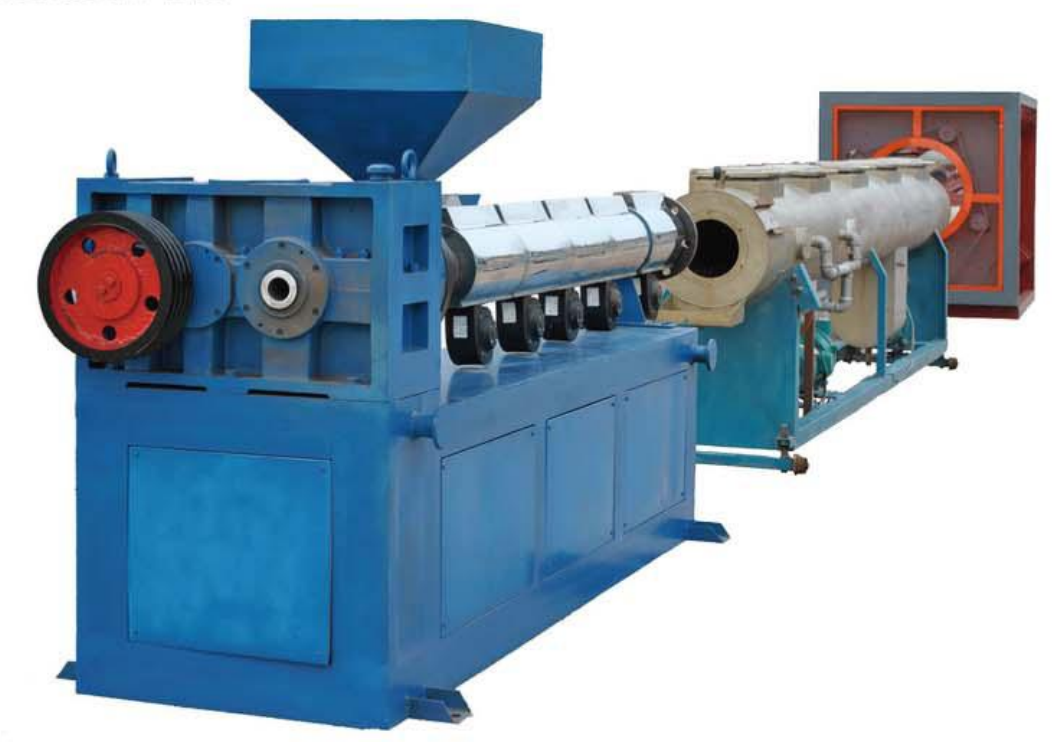

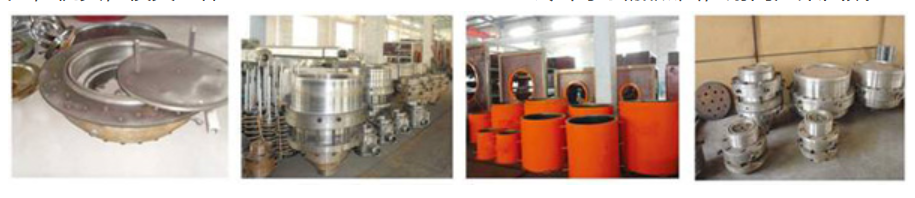

This production line is mainly composed of extruder unit, tractor, air sealing machine, small sports car, mold, cooling system, electrical control system and so on.

Outer Dia of Polyethylene casing mm	Thick type	Thin type	Corresponding steel pipe	Insulating layer
110	2.6	2.0	￠45×3.0	～29
125	2.6	2.0	￠57×3.5	～30
142	2.8	2.2	￠76×4.0	～38
160	3.0	2.4	￠89×4.0	～30
180	3.2	2.4	￠108×4.5	～33
200	3.5	2.5	￠133×4.5	～30
225	4.0	2.5	￠159×4.5	～39
250	4.5	3.2	￠159×4.5	～40
265	4.0	3.0	￠194×5.0	～30
310	4.5	3.2	￠219×6.0	～40
365	6.0	4.2	￠273×6.0	～40
420	6.5	4.7	￠325×7.0	～40
470	7.0	5.5	￠377×7.0	～54
550	8.0	6.0	￠426×7.0	～54
600	8.5	6.0	￠478×8.0	～55
655	9.0	6.5	￠529×8.0	～55
760	10	7.5	￠630×9.0	～55
850	12.0	8.0	￠720×11.0	～55
960	14.0	10.0	￠830×11.0	～60
1054	16.0	12	￠960×11.0	～62
1155	17.0	12	￠1000×11.0	～65
1275	17.0	13	￠1120×12.0	～65
1380	18.5	14	￠1220×12.0	～65
1590	21.5	15	￠1420×14.0	～70
